plastic flake color sorter,ccd belt-type color sorter machine in china

FOB Reference Price:Get Latest Price
$60,000.00 - $100,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
6SXL-1200KS2F
Machinery Capacity:
2.0-3.0
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining
Brand Name:
TAIHO
Place of Origin:
china
Voltage:
220V
Power(W):
5.6
Dimension(L*W*H):
4000*2550*2850
Weight:
3171
Certification:
ISO 9001
Warranty:
1 Year, 1 Year
After-sales Service Provided:
Field installation, commissioning and training, Overseas service center available
Application fields:
Dairy products factory, Commercial catering, Flour mill, Winery, Fruit processing plant, Cooking oil factory, Cannery, Beverage Factory, Meat processing plants, Vegetable processing plant, Seasoning plant, Frozen food Factory, Snack food factory, Bakery
Machinery Function:
COLOR SOTER
Output product name:
COLOR SOTER
Type:
color sorter machine
Rejection:
≥10:1
Power:
220V/50Hz
Configuration Level:
High
Sorting Accuracy(%):
≥99.99
Minimum Resolution:
0.04
Cooling Mode:
Wind Cooling
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
belt type color sorter by Strong Wooden Case
Port
Shanghai,China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

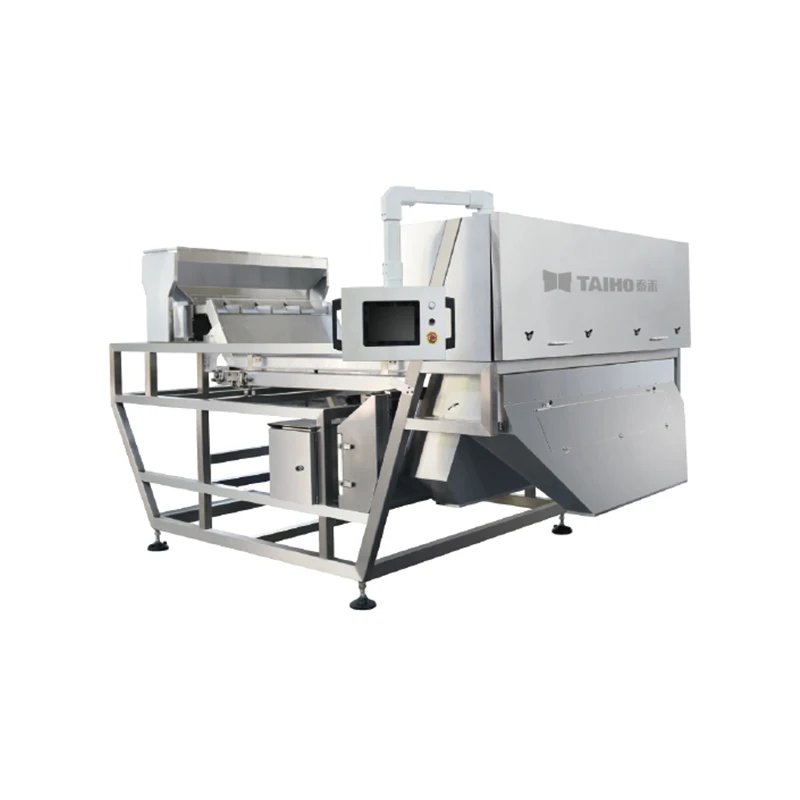

plastic flake color sorter,ccd belt-type color sorter machine in china

Remarks:

1. The color performance above takes the quartz sand with impurity content of 2% as an example. Specific indexes may vary with the difference in materials and impurities.

2. There will not be further notice about product updating, and users should refer to the actual conditions of the machine.

SPECIFICATIONS FOR 6SXL-1200 BEIT-TYPE COLOR SORTER

SIZE(mm)
3501*1935*1627

POWER(Kw)
3.0

PRODUCT OUTPUT(T/H)

(Quartz Sand)
2-3

Main Features

1,Camera:leading in the industry
2,High-frequency Solenoid Valve:leading in China
3,Intelligent Image Processing Algorithm
4,Customized Lighting System:import purchasing
5,Data Transmission System:high-speed and stable
6,Chip:innovative ultra high-speed processing
7,Crawler Transmission:transmission structure
8,Human-Computer Interface:simple and easy to operate

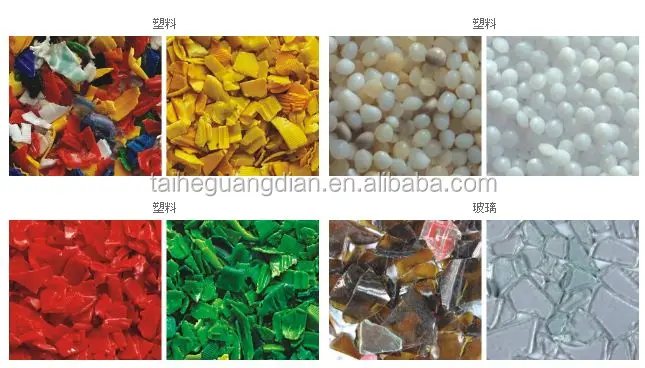

Examples of Sorting
Certifications
Detailed Images

1,Camera:leading in the industry


International well-known brand customized lens

Import high-end 4096PIXEL CCD sensor
High-speed of scanning
The highest resolution comes to 0.02 mm2

2 ,High-frequency Solenoid Valve:leading in China


High-quality high-frequency solenoid valve, with consistency of near zero error.
Service life more than 1 billion times.
Ultra high precision, leading in China

3,Intelligent Image Processing Algorithm


The combination of colors and shapes of intelligent algorithm
Leading role in China.
Precise professional sorting solutions

4,Customized Lighting System:import purchasing


Advanced LED optical design system.
Various light sources are available to suit different materials.
Designated procurement of imported LED lamps,Higher stability, longer service life.
LED lighting system with thermal dissipation.


5,Data Transmission System:high-speed and stable


The COAX interface:
High anti-jamming, high transmission speed, high stability

6,Chip:innovative ultra high-speed processing


Based on SOC platform architecture;
Compared to DSP platform, the CPU improves 5 times, output processing improves 4 times, realizing the stability ,reliability and high-speed mass data processing.

7,Crawler Transmission:transmission structure

The crawler-type transmission structure shows good performance in color sorting, and the stable material transmission can effectively improve the ratio of color separation mass and the net selection rate, meanwhile reducing the crushing rate of material in the course of color sorting.

8,Human-Computer Interface:simple and easy to operate

More intelligent, easy operation, one button for professional sorting, remote debugging, remote diagnosis, remote software upgrading.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

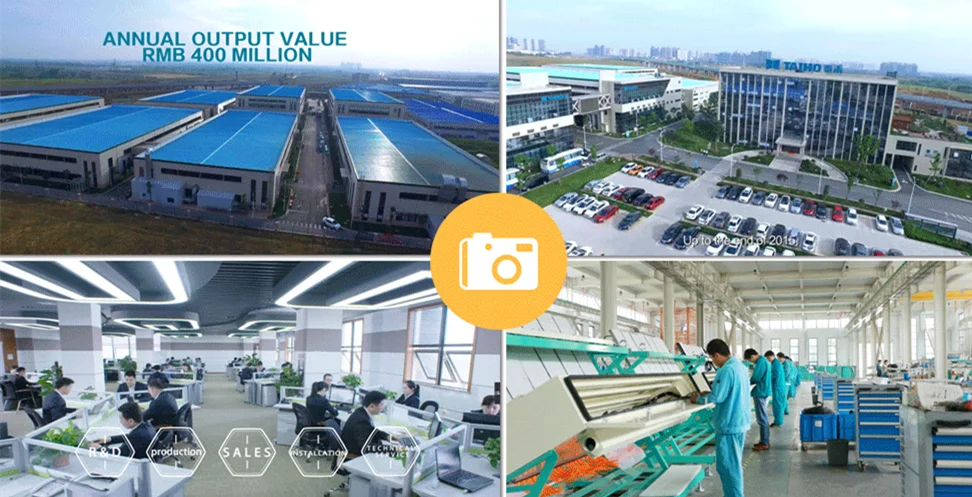

 Enterprise Profile

FAQ

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

1. How about engineers service oversea?

Engineers available to service machinery overseas.

2. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.

3. How about the sample machines for testing?
Sample sending for testing is welcomed.
Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard). we send our video to you.

4. How about the guarantee period?
One year.

5. Will you accept L/C as payment?
L/C ,T/T is OK .
Alibaba Trade Assurance is your best choice.

6.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .

7.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
