Tea Separation Machine Made In China Taiho

FOB Reference Price:Get Latest Price
US $30,000-80,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
S.PRECISION
Model Number:
6CSX-378II
Type:
tea processing machine
After-sales Service Provided:
Engineers available to service machinery overseas
Technology:
CCD Camera
Thoroughfare:
Flat
Sorting Accuarcy:
≥99.99%
Otimalcarryover:
≥10:1
Production output:
300-1000kg/h
SupplyAbility
SupplyAbility:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
IN WOODEN CASE
Port
shanghai,China
Lead Time :
10 - 15 DAYS

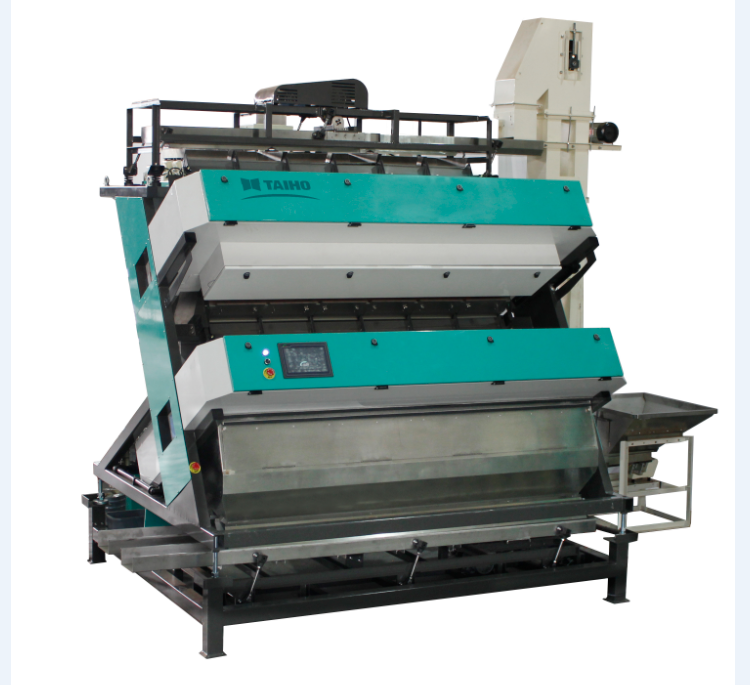

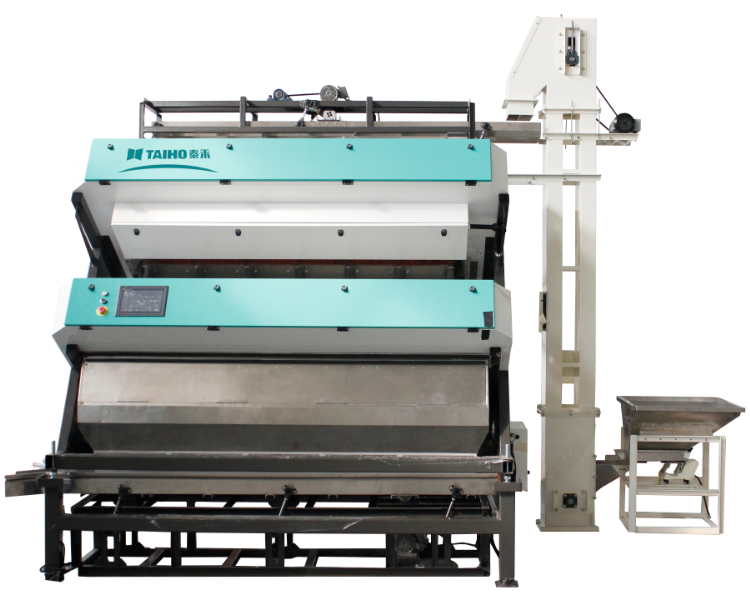

TEA CCD Color Sorter Machine Black and Green Tea Separation Machine

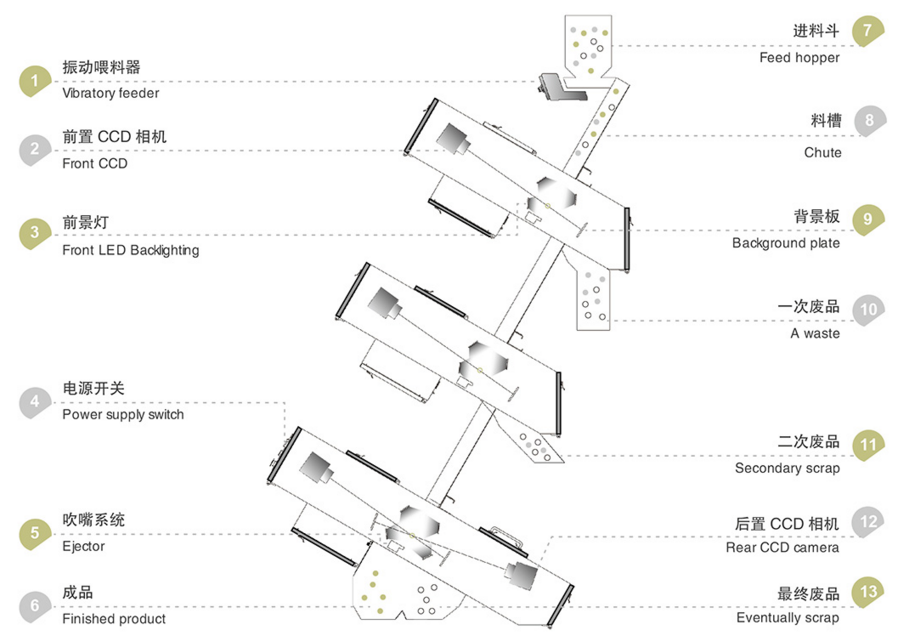

Schematic







Product Technical Features



Camera

leading in the industry

International well-known brand customized lens
Import high-end 4096PIXEL CCD sensor
High-speed of scanning
The highest resolution comes to 0.02 mm²



High-frequency Solenoid Valve

leading in China

High-quality high-frequency solenoid valve, with consistency of near zero error.

Service life more than 1 billion times.
Ultra high precision, leading in China



Intelligent Image Processing Algorithm

The combination of colors and shapes of

intelligent algorithm
Leading role in China.
Precise professional sorting solutions



Customized Lighting System

import purchasing

Advanced LED optical design system.
Various light sources are available to suit different materials.
Designated procurement of imported LED lamps,Higher stability, longer service life.
LED lighting system with thermal dissipation.



Data Transmission System

high-speed and stable

The COAX interface:
High anti-jamming, high transmission speed, high stability



Chip

innovative ultra high-speed processing

Based on SOC platform architecture;
Compared to DSP platform, the CPU improves 5 times, output processing improves 4 times, realizing the stability ,reliability and high-speed mass data processing.



Feed Trough

special technology

Application of high-quality 300mm ultra wide trough in China;

Special anodization treatment process ensures the required production in line with the international first-class level;

Cascading flat plate and narrow chute channel can be outfitted to sort a variety of material colors.



Human-Computer Interface

simple and easy to operate

More intelligent, easy operation, one button for professional sorting, remote debugging, remote diagnosis, remote software upgrading.





Examples Of Sorting

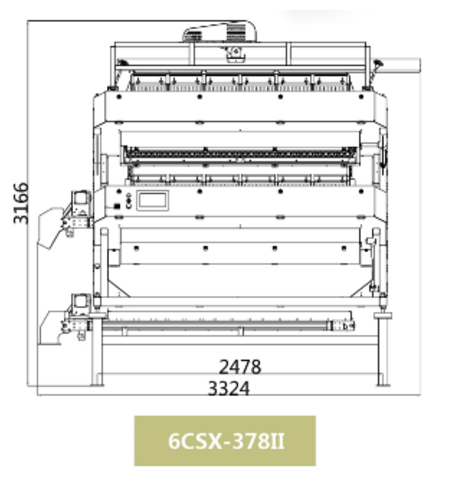

Product Model





Product Specifications



MODEL(C series)SIZE(mm)POWER(Kw)

PRODUCT OUTPUT(KG/H)
(TIEGUANYIN)


SORTING
ACCUARCY(%)

CARRYOVER RATE
(BAD: GOOD)

6CSX-252
(double)



2775*2150*3095

5.0200-800≥99≥5:1
6CSX-378
(double)
2905*2250*31366.0300-1000≥99≥5:1
6CSX-252TS
(Three layers)
2811*2541*37726.0200-800≥99.99≥5:1
6CSX-378TS
(Three layers)
3430*2543*37927.0300-1000≥99.99≥5:1



MODEL(M series)

SIZE(mm)

POWER(Kw)

PRODUCT OUTPUT(KG/H)
(TIEGUANYIN)

SORTING
ACCUARCY(%)

CARRYOVER RATE
(BAD: GOOD)

6CSX-63959*1486*14160.5100-200≥99≥5:1



Remarks:
1. The color performance above takes the tieguanyin with impurity content of 2% as an example. Specific indexes may vary with the difference in materials and impurities.
2. There will not be further notice about product updating, and users should refer to the actual conditions of the machine.
