Quick Details

  • Condition: New
  • Machine Type: glass color sorter
  • Production Capacity: 1.5~5.0 t/h
  • Place of Origin: Anhui, China (Mainland)
  • Brand Name: S.PRECISION
  • Model Number: SKC
  • Voltage: 220/50(110/60) v/hz
  • Power(W): 2.0 kw
  • Dimension(L*W*H): 1965*1636*2070 mm
  • Weight: 890KG
  • Certification: CE
  • Warranty: 1year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • color: glass color sorter
  • Sorting Accuarcy: 99.9%

Packaging & Delivery

Packaging Details glass color sorter In wooden case
Delivery Time 3 weeks

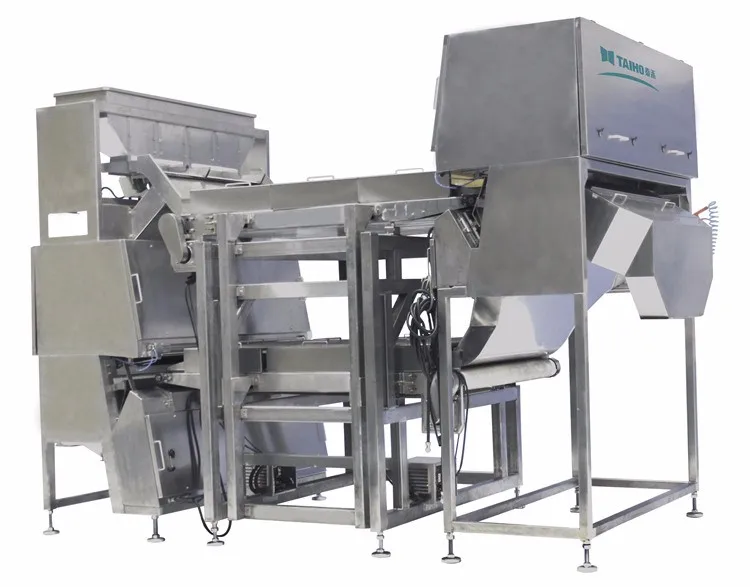

 Glass Sorting Machine, Glass Color Sorter







6SXL-1200

Single-layer belt-type color sorter



6SXL-1200II

Single-layer belt-type color sorter

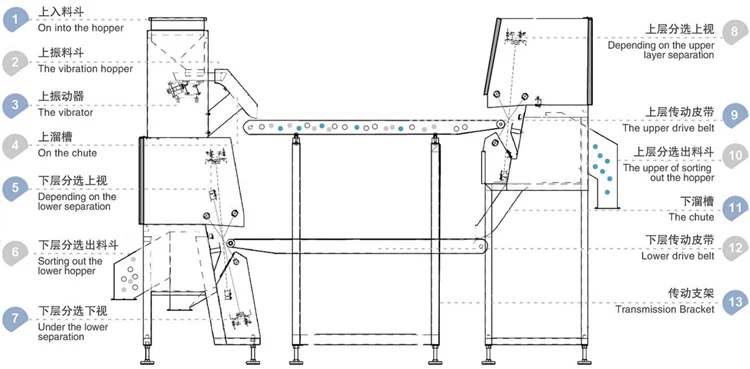

Schematic

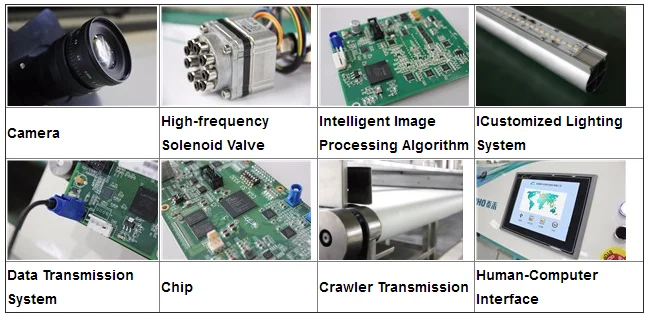

Product Technical Features



Camera

leading in the industry

International well-known brand customized lens
Import high-end 4096PIXEL CCD sensor
High-speed of scanning
The highest resolution comes to 0.02 mm²



High-frequency Solenoid Valve

leading in China

High-quality high-frequency solenoid valve, with consistency of near zero error.

Service life more than 1 billion times.
Ultra high precision, leading in China



Intelligent Image Processing Algorithm

The combination of colors and shapes of

intelligent algorithm
Leading role in China.
Precise professional sorting solutions



Customized Lighting System

import purchasing

Advanced LED optical design system.
Various light sources are available to suit different materials.
Designated procurement of imported LED lamps,Higher stability, longer service life.
LED lighting system with thermal dissipation.



Data Transmission System

high-speed and stable

The COAX interface:
High anti-jamming, high transmission speed, high stability



Chip

innovative ultra high-speed processing

Based on SOC platform architecture;
Compared to DSP platform, the CPU improves 5 times, output processing improves 4 times, realizing the stability ,reliability and high-speed mass data processing.



Crawler Transmission:transmission structure
The crawler-type transmission structure shows good performance in color sorting, and the stable material transmission can effectively improve the ratio of color separation mass and the net selection rate, meanwhile reducing the crushing rate of material in the course of color sorting.





Human-Computer Interface

simple and easy to operate

More intelligent, easy operation, one button for professional sorting, remote debugging, remote diagnosis, remote software upgrading.





Examples of Sorting

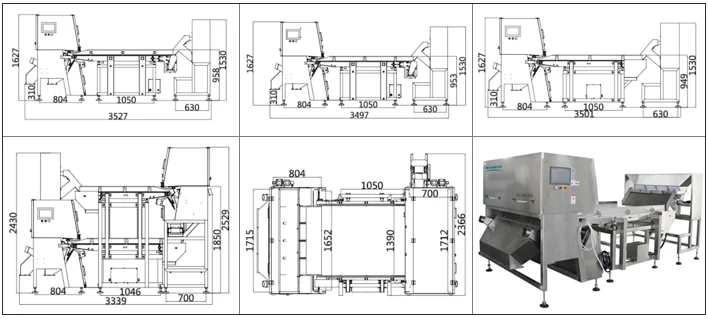

Product Model





Product Specifications



MODELSIZE(mm)POWER(Kw)

PRODUCT OUTPUT(T/H)
(Quartz Sand)

6SXL-3003497*993*16271.50.5-1
6SXL-6003527*1307*16271.81-2
6SXL-12003501*1935*16273.02-3
6SXL-1200Ⅱ3339*2366*25295.52-3



Remarks:
1. The color performance above takes the quartz sand with impurity content of 2% as an example. Specific indexes may vary with the difference in materials and impurities.
2. There will not be further notice about product updating, and users should refer to the actual conditions of the machine.
